>> A << Crankshaft Sensing Ring Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Apply the engine oil to the thread portions and the sealed portions on the installation bolts.

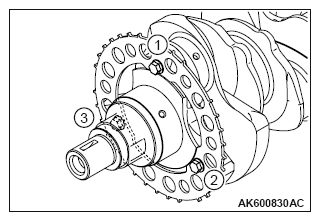

- In accordance with the tightening order shown in the illustration, tighten the crankshaft sensing ring to the specified torque.
Tightening torque: 12 ± 2 N.m (106 ± 17 in-lb)
