Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: To store the change gear ratio status of the CVT assembly in the TCM memory, drive the vehicle at 3 km/h (1.9 mph) or faster after replacing the TCM.

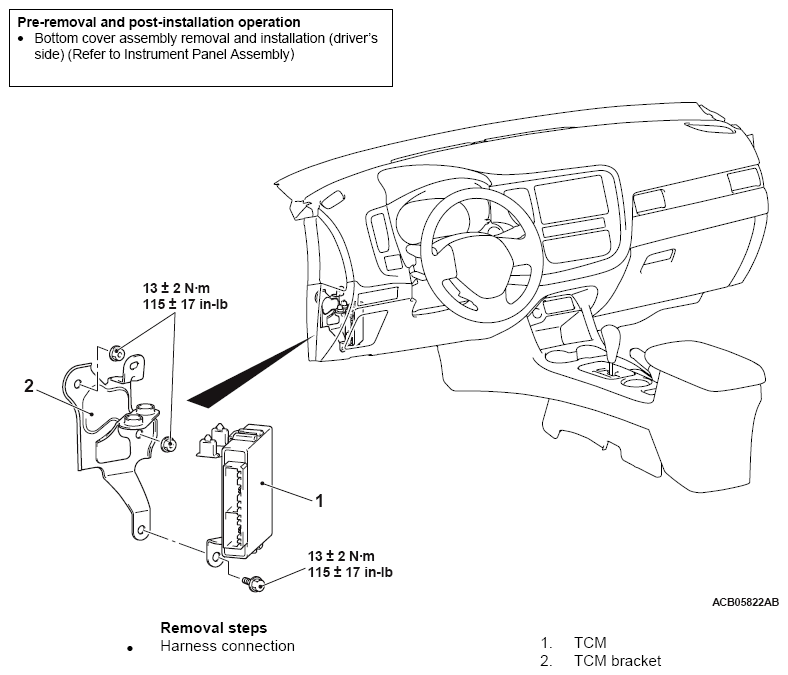

Fig 1: Removing/Installing Transaxle Control Module With Torque Specification
G09664972Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
