>> C << Transaxle Control Cable (Transaxle Side) Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the selector lever to the "N" range.
  2. Move the manual control lever to Neutral position.
  3. Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).
    NOTE: Insert a ø5 mm (0.2 inch) bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.
    Fig 1: Identifying Transmission Range Switch Body, Manual Control Lever And Flange Hole
    G09664968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

  5. Make sure that the transaxle side ranges that are corresponding to the selector lever position operate and function without fail.

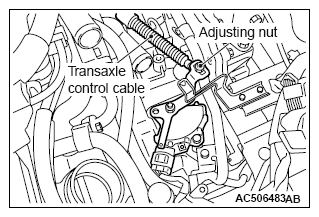

    Fig 2: Identifying Transaxle Control Cable And Adjusting Nut
    G09664969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
