Transmission Fluid Change

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drain plug on the bottom of the transaxle case to drain the transmission fluid.

    Draining amount: Approximately 5.5 dm 3  (5.81 qt)

  2. Install the drain plug with a new gasket to the transaxle case, and tighten it to the specified torque.

    Tightening torque: 34 ± 2 N.m (25 ± 1 ft-lb)

    CAUTION: If the transaxle case becomes full before filling 5.5 dm3 (5.81 qt) of transmission fluid, stop filling the transmission fluid.

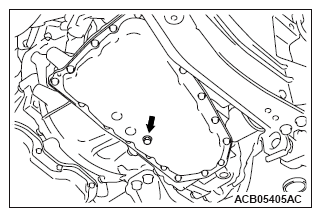

    Fig 1: Locating Transmission Fluid Drain Plug
    G09664927Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Fill in the new transmission fluid through the oil filler tube.

    Filling amount: Approximately 5.5 dm 3  (5.81 qt)

    Transmission fluid: Mitsubishi Motors Genuine CVTF-J4

  4. Start up the engine and let it idle for 1 to 2 minutes.
  5. Move the selector lever to every position, and then move it to the P or N range.
  6. Stop the engine and perform the above steps  1 to  5 again.
  7. Stop the engine, and discharge a small amount of transmission fluid to check for fouling. If fouling is found, repeat steps  1 to  5 until clean transmission fluid comes out.
  8. Drive the vehicle until the transmission fluid is warmed up to the normal operating temperature 70 - 80°C (158 - 176°F), and check the transmission fluid level. It must be within the "H" area on the oil level gauge.
    NOTE: The "C" level is for reference only. Use the "H" level as the criteria.
    NOTE: Use scan tool (M.U.T.-III) to measure the transmission fluid temperature.
    Fig 2: Identifying Transmission Fluid Gauge
    G09664928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: When a certain amount of time is required to warm up the transmission fluid to the normal operating temperature 70 - 80°C (158 - 176°F), check the oil level referring to the characteristics chart.
  9. Adjust the transmission fluid level to the specified level. Refill the transmission fluid when the fluid level is low, and drain the transmission fluid through the drain plug when the fluid level is high.
  10. Securely insert the oil level gauge into the oil filler tube.
  11. TCM records the deterioration level of the transmission fluid. After replacing the transmission fluid with new one, use scan tool (M.U.T.-III) to reset the deterioration level recorded in TCM.
    Fig 3: Fluid Temperature Graph
    G09664929Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
