Transfer Oil Change < AWD >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Remove the drain plug and gasket, to drain the transfer oil.
Install the drain plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
Remove the filler plug and gasket, and fill the transfer oil up to the lower edge of the filler plug hole.

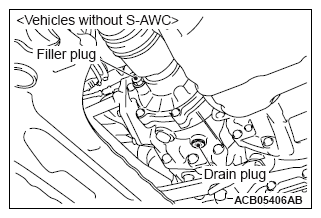

Fig 1: Identifying Transfer Oil Drain And Filler Plug (Vehicles Without S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Brand name:

Mitsubishi Motors Genuine super hypoid gear oil API classification GL-5 SAE 80

Filling amount:

0.47 dm ³ (0.50 quarts) < Vehicles without S-AWC >

0.45 dm ³ (0.48 quarts) < Vehicles with S-AWC >
Install the filler plug and new gasket, and tighten to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

Fig 2: Identifying Transfer Oil Drain And Filler Plug (Vehicles With S-AWC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Transfer Oil, Filler Plug Hole And Gasket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
