Solenoid Valve Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing A in the figure, turn B counterclockwise to unlock the CVT assembly connector, and disconnect the connector.
  2. Measure the resistance between the terminals of the applicable solenoid valves and ground.
    RESISTANCE REFERENCE

    Terminal No. Applicable solenoid valve Resistance value Ω
    1 Line pressure solenoid valve Approximately 5.6 to 6.6
    2 Secondary pressure solenoid valve
    3 Lockup solenoid valve
    4 Lockup/select switching solenoid valve Approximately 25.5 to 29.3

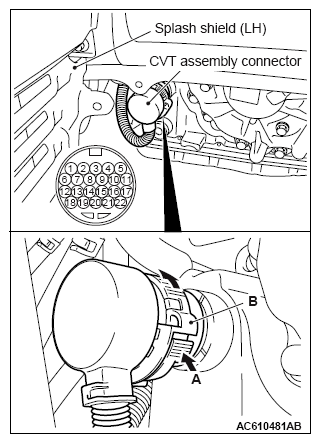

    Fig 1: Disconnecting CVT Assembly Connector
    G09664948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. When the resistance is within the standard value, check the power supply and the ground circuits.
    CAUTION: Each solenoid valve cannot be removed or replaced as a single unit. When replacement of any one of the solenoid valves is necessary, replace the valve body assembly.
  4. When the resistance is outside the standard value, replace the valve body assembly and the harness.
