CVT Control Relay Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Remove the CVT control relay.

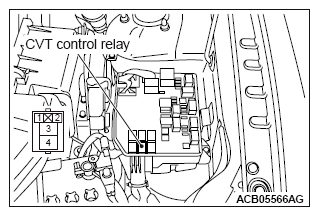

Fig 1: Identifying CVT Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use a jumper wire to connect the positive battery terminal (+) to the CVT control relay terminal No.2, and the negative battery terminal (-) to the terminal No.1.

Check for continuity between the CVT control relay terminals No.3 and No.4.

Jumper wire	Continuity between terminals No.3 and No.4
Connect	Yes (2 Ω or less)
Disconnect	No

If not as specified, replace the CVT control relay.

Fig 2: Checking Continuity Between CVT Control Relay Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
