D Range

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

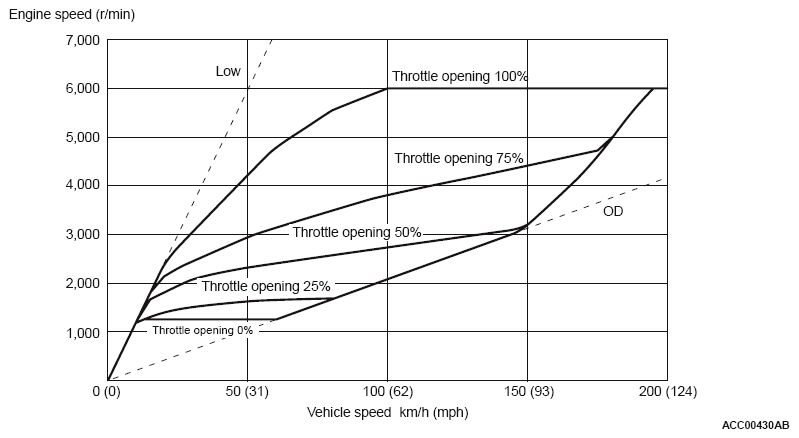

Fig 1: Engine Speed Versus Vehicle Speed Graph (D Range)
G09664864Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
