LOGIC FLOW CHARTS (Monitor Sequence)

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

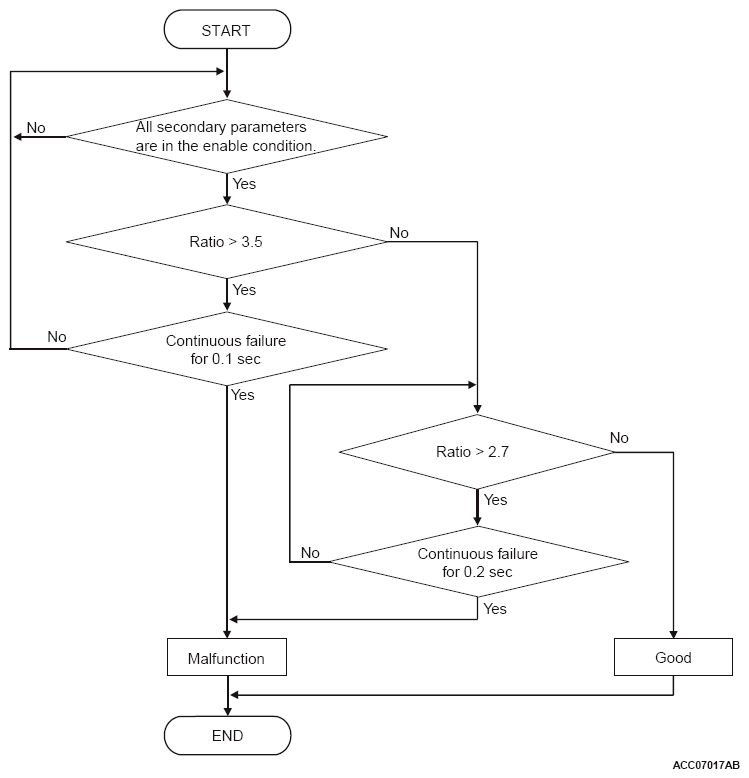

Fig 1: Logic Flow Charts (Monitor Sequence)
G09664885Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
