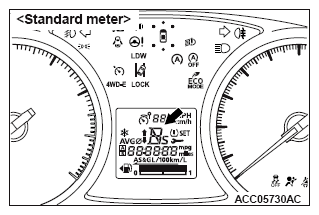

< Standard Meter >
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
If a malfunction occurs in the CVT system, any of "R", "N", "D", "Ds", "L" or "A" will flash (one flash per two seconds) on the selector lever position indicator in the multi-information display.
NOTE:
- The selector lever position indicator "P" does not flash when a malfunction occurs in the CVT system.
- When the system is normal, the selector lever position indicator "A" does not illumination. Only when a malfunction occurs in the transmission range switch, the indicator will flash.
If the selector lever position indicator flashes rapidly (one flash per one second), the CVT fluid temperature is too high. [Illuminates when the fluid temperature is approximately 133°C (271°F) or higher, and goes out automatically when the fluid temperature drops below approximately 130°C (266°F).]
