Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

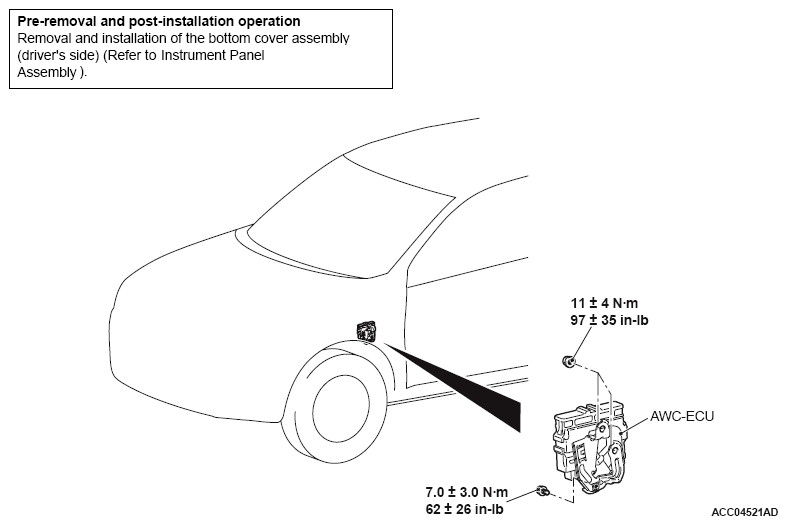

Fig 1: Removing/Installing AWC-ECU With Torque Specification (Vehicles With S-AWC)
G09664973Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
