Brake Pedal Height Check

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn up the floor carpet under the brake pedal.
  2. Remove the stoplight switch (Refer to BRAKE PEDAL  ).
  3. Use a needle or similar tool to measure the dimension A in the figure (distance from the dash panel pad surface to the dash panel).
  4. Measure the dimension B in the figure (distance from the pedal pad surface to the dash panel pad surface).
  5. Make sure that the total of the dimensions A and B measured in Steps  2 and  3 (brake pedal height) is within the standard value.

    Standard value (A + B): 221.8 - 227.8 mm (8.7 - 9.0 inch)

    Fig 1: Identifying Distance From Pedal Pad Surface To Dash Panel Pad Surface
    G09667536Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. When the brake pedal height is not within the standard value, inspect the brake pedal in the following procedure.
    1. Remove the brake pedal assembly (Refer to BRAKE PEDAL  ).
    2. Check the removed brake pedal assembly for distortion, and replace it when deformed (Refer to << A >> BRAKE PEDAL ASSEMBLY REMOVAL  ).
    3. Install the brake pedal assembly (Refer to BRAKE PEDAL  ).
      NOTE: When installing, compress the dash panel pad.
    4. Measure the brake pedal height again, and make sure that it is within the standard value (A + B).

      When the measured value is not within the standard value, measure the dimension C in the figure (distance from the stud bolt end to the clevis hole center), and make sure it is within the standard value (C).

      Standard value (C): 75.8 - 80.2 mm (2.98 - 3.16 inch)

    5. When the measured value is not within the standard value (C), replace the brake booster (Refer to MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER ASSEMBLY  ).
      Fig 2: Identifying Brake Pedal Height Dimension
      G09667537Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. After checking the brake pedal height, install the stoplight switch in the following procedure:
    1. Insert the stop light switch into the key hole on the plate.
    2. While holding the brake pedal upwards, push in the stop light switch to the stop position.
    3. Lock the stop light switch body by twisting it clockwise.
    4. Check that the clearance between the stoplight switch and the pedal stopper is as shown in the figure.
      CAUTION: Make sure that the stoplight is not illuminated when the brake pedal is not depressed.
    5. Connect the stoplight switch connector.
  8. Check the key interlock mechanism and the shift lock mechanism (Refer to SHIFT LOCK MECHANISM CHECK ).
  9. Recover the floor carpet under the brake pedal.

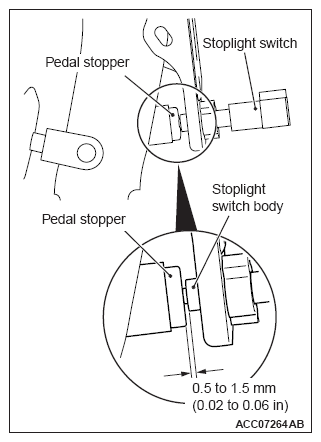

    Fig 3: Identifying Dimension Between Stoplight Switch Body And Pedal Stopper
    G09667538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
