<< B >> Engine Mounting Bracket Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure special tool engine hanger (MB991928 or MB991895) for holding the engine assembly (Refer to TRANSMISSION ASSEMBLY ) < CVT >.

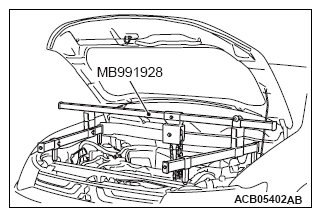

    Fig 1: Identifying Engine Assembly And Special Tool (MB991928)
    G09663389

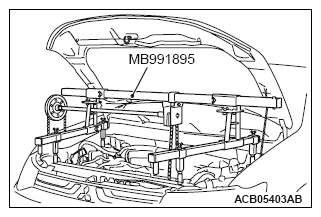

    Fig 2: Identifying Engine Assembly And Special Tool (MB991895)
    G09663390
  2. Install special tool engine hanger plate (MB991956) to the motor bracket mounting of the cylinder head.

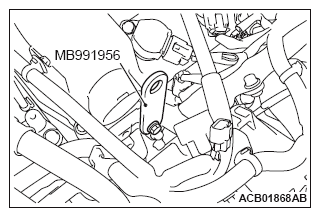

    Fig 3: Identifying Engine Assembly And Special Tool (MB991956)
    G09663391
  3. Set the following special tools to special tool MB991956 and the engine hanger to hold the engine assembly.
    • Hanger (MB991527)
    • Chain of engine hanger balancer (MB991454)
  4. Adjust the special tool not to allow the weight of the engine and transmission assembly to rest on the engine mounting bracket. Then remove the engine mounting bracket.

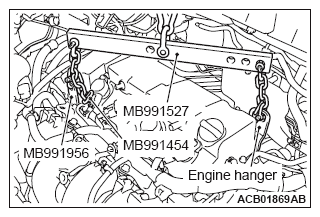

    Fig 4: Identifying Engine Hanger And Special Tools
    G09663392
