>> B << Engine Mounting Bracket Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.

Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting bracket while adjusting the position of the engine.
Remove the special tool for holding the engine assembly.
- Hanger (MB991527)
- Chain of engine hanger balancer (MB991454)
- Engine hanger plate (MB991956)
Install the motor bracket (Refer to VALVE LIFT CONTROL MOTOR ).

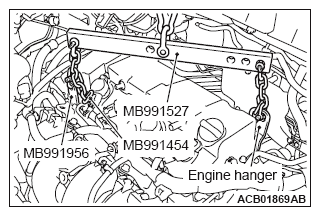

Fig 1: Identifying Engine Hanger And Special Tools
Secure the special tool for holding the engine assembly, which will be used when the transaxle assembly is installed (Refer to TRANSAXLE ASSEMBLY ).
- Engine hanger (MB991928 or MB991895)
- Hanger (MB991527)
- Chain of engine hanger balancer (MB991454)
- Engine hanger plate (MB992853)
Remove the garage jack which supports the engine assembly.

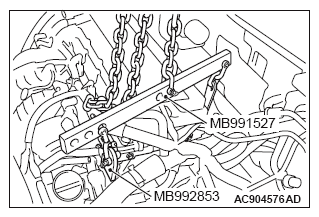

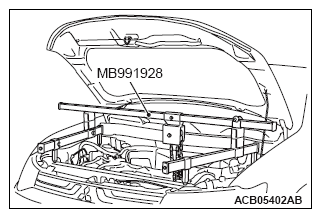

Fig 2: Identifying Engine Assembly And Special Tool (MB991928)

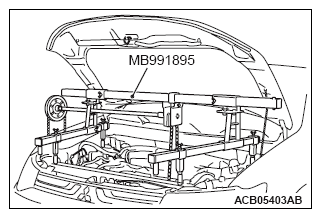

Fig 3: Identifying Engine Assembly And Special Tool (MB991895)

Fig 4: Identifying Garage Jack And Special Tools
