Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application

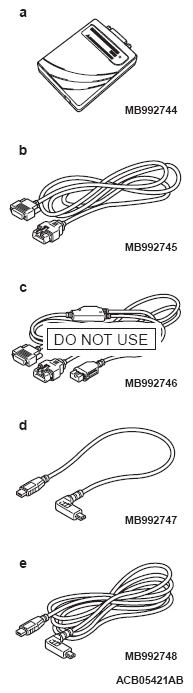

G09667384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - CAN bus diagnostics

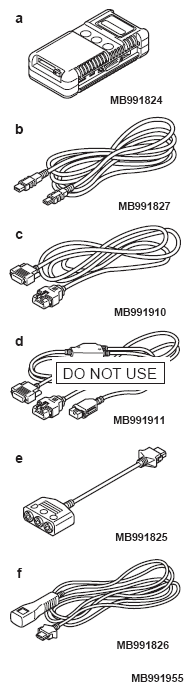

G09667385Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (for vehicles with CAN communication)
  4. M.U.T.-III main harness B (for vehicles without CAN communication)
  5. Measuring adapter harness
  6. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use the M.U.T.-III main harness A to send simulated vehicle speed. If you connect the M.U.T.-III main harness B instead, the CAN communication does not function correctly.
CAN bus diagnostics
G09667386Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Wiring harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G09667387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 - Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
G09667388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991709
Wiring harness set		 - Measurement of voltage and resistance at the ASC-ECU
