Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

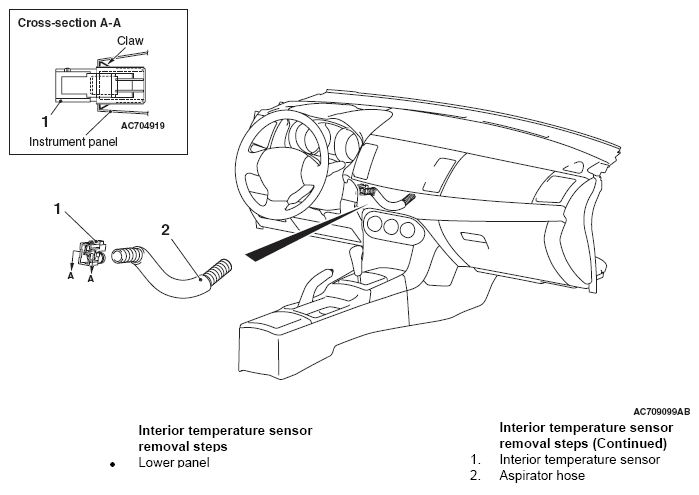

Fig 1: Identifying Interior Temperature Sensor Remove/Install Components
G05397403Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
