Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Before removing the steering wheel assembly and driver's air bag module/knee air bag module, always refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING or KNEE AIR BAG MODULE .)

PRE-REMOVAL AND POST-INSTALLATION OPERATION CHART

Pre-removal and Post-installation Operation

Refrigerant draining and Refilling (Refer to CHARGING AND DISCHARGING ).
Engine coolant Draining and Refilling (Refer to ENGINE COOLANT ).
Steering Column Shaft Assembly Removal and Installation (Refer to STEERING SHAFT ).
Instrument Panel Removal and Installation (Refer to INSTRUMENT PANEL ).
Floor console Removal and Installation (Refer to FLOOR CONSOLE ).

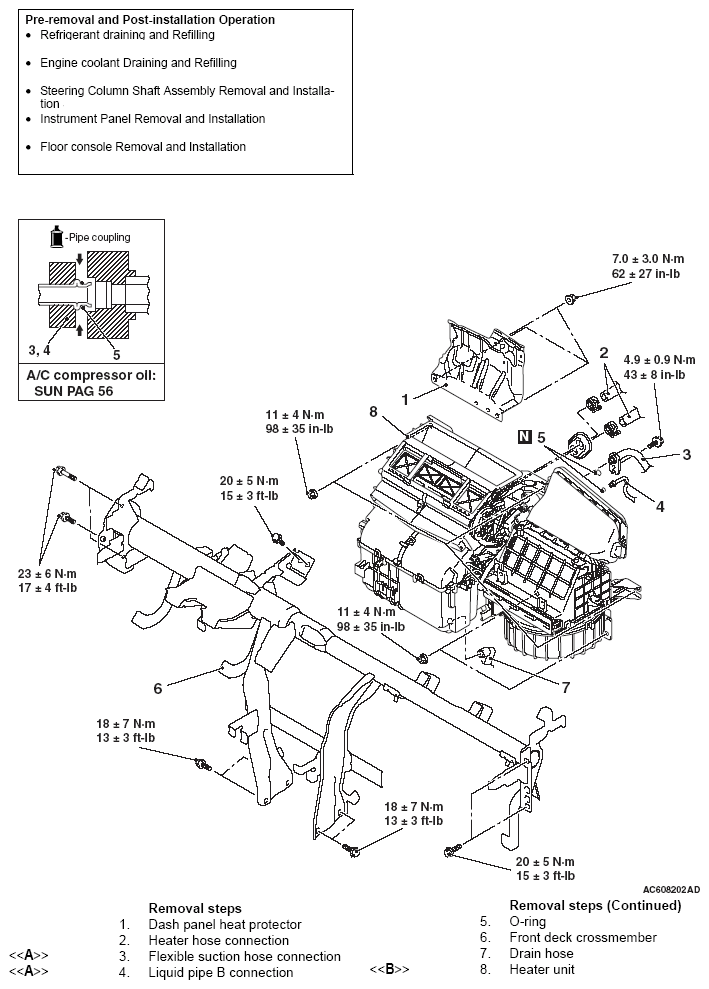

Fig 1: Heater Unit And Blower Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
