Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
PRE-REMOVAL AND POST-INSTALLATION OPERATION CHART

Pre-removal and Post-installation Operation
  • Refrigerant Draining and Refilling (Refer to CHARGING  ).
  • Headlight support upper panel Removal and Installation (Refer to LOOSE PANEL ).

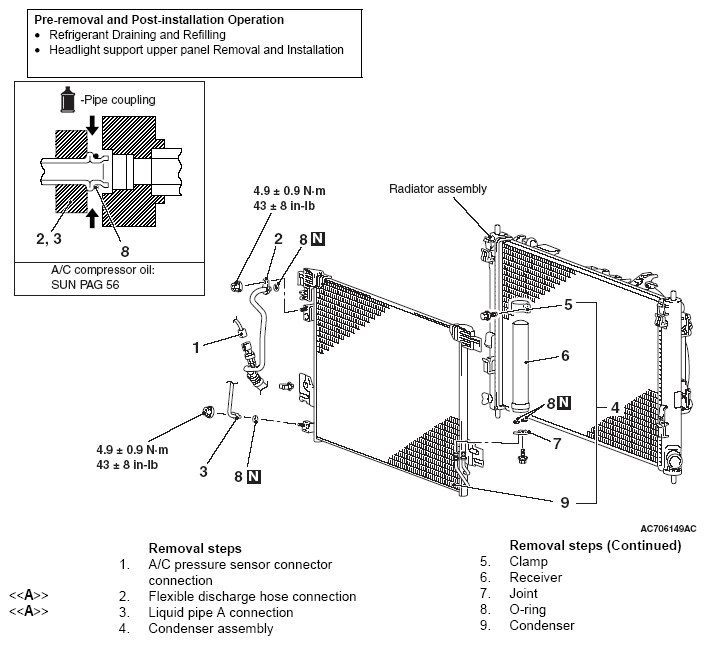

Fig 1: Condenser Assembly Replacement Components With Torque Specifications
G05397416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
