INSPECTION PROCEDURE 3: The Compressor does not Work: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

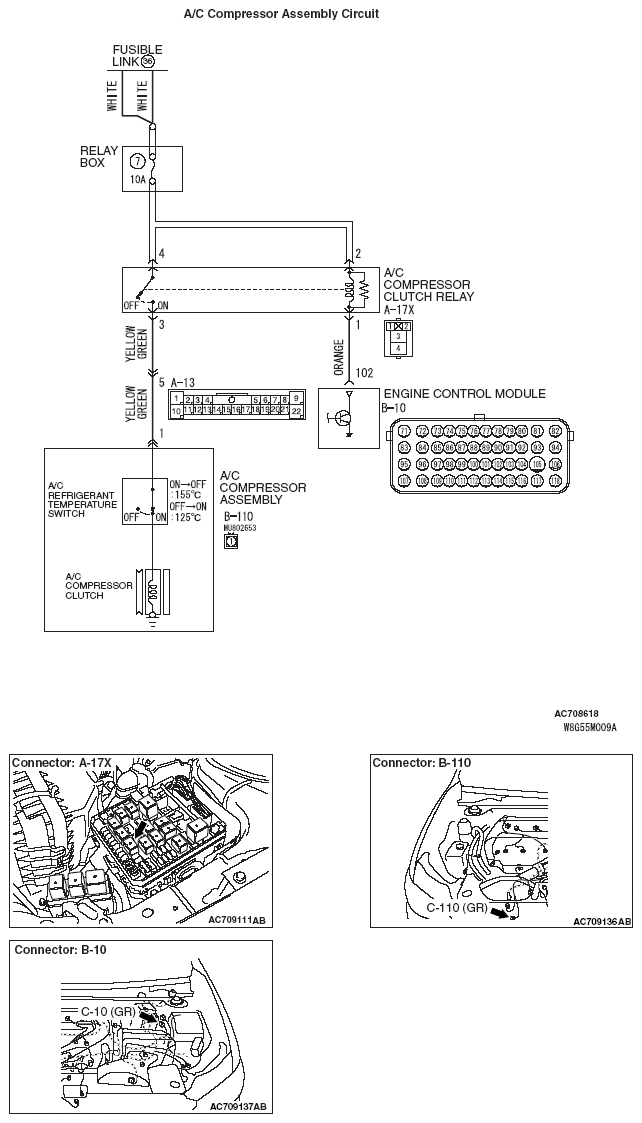

Fig 1: A/C Compressor Assembly Circuit Diagram
G05397352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
