DTC B1000: Control Panel Communication Error: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

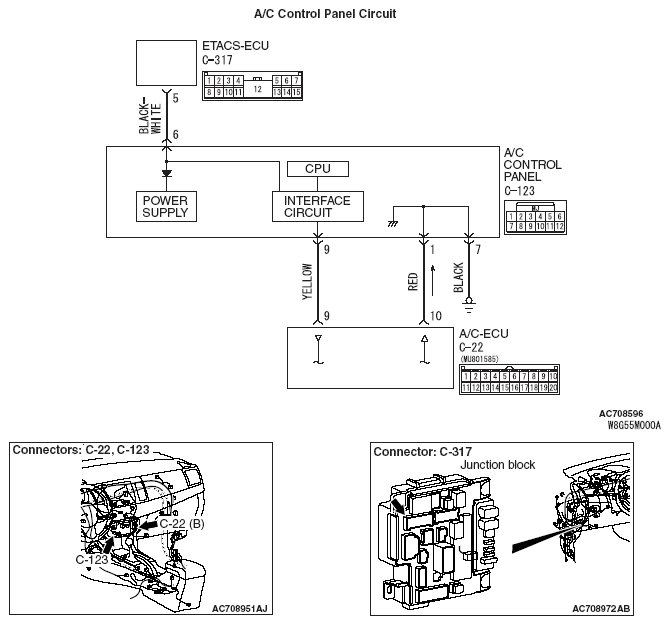

Fig 1: A/C Control Panel Circuit Diagram
G05397311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
