Inspection Procedure 5: ETACS-Ecu Does Not Receive Any Signal From The Front Door Switch (LH): Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

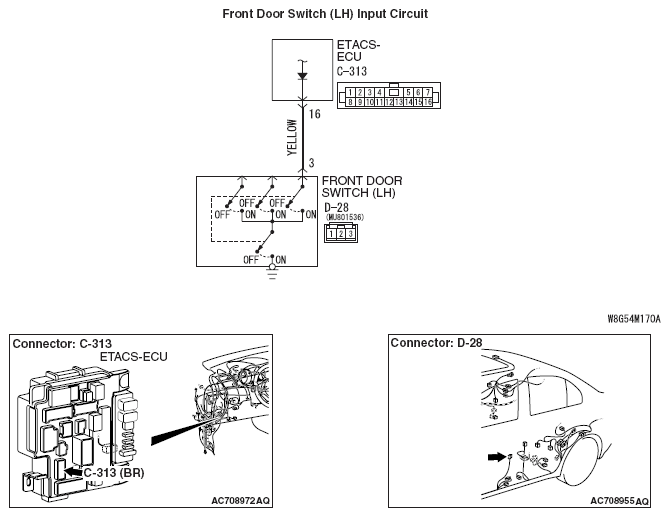

Fig 1: Front Door Switch (LH) Input Circuit Diagram
G05397222Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
