Inspection Procedure 12: ETACS-Ecu Does Not Receive Any Signal From The Hood Switch: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

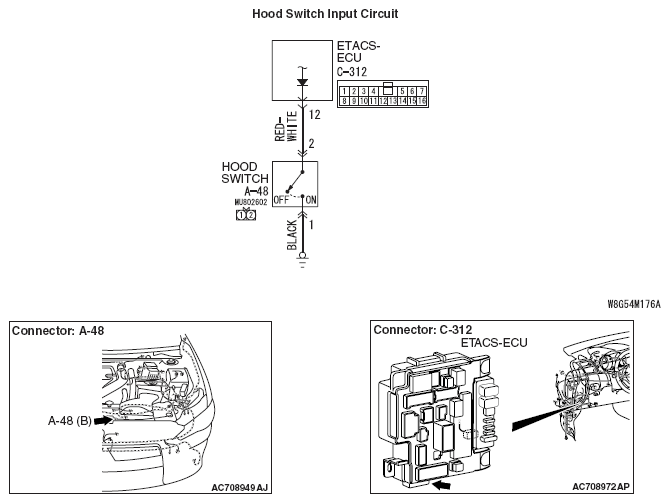

Fig 1: Hood Switch Input Circuit Diagram
G05397230Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
