Rear Window Defogger Does Not Operate: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

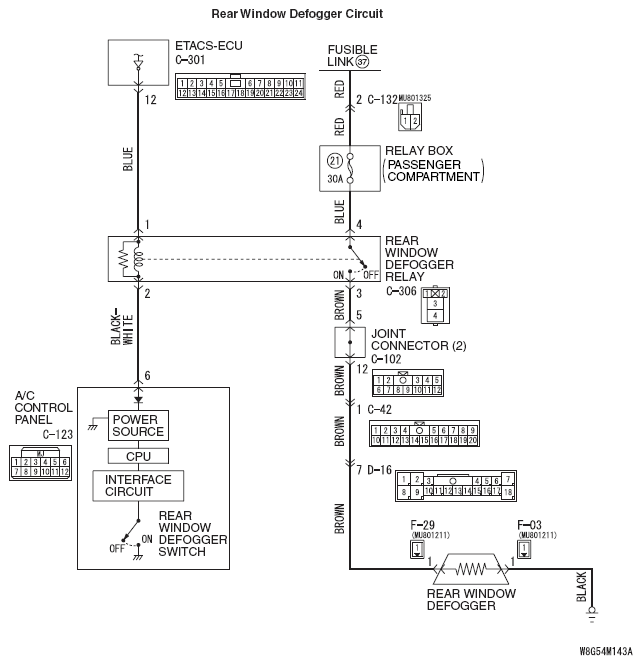

Fig 1: Rear Window Defogger Circuit Diagram
G05397272Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

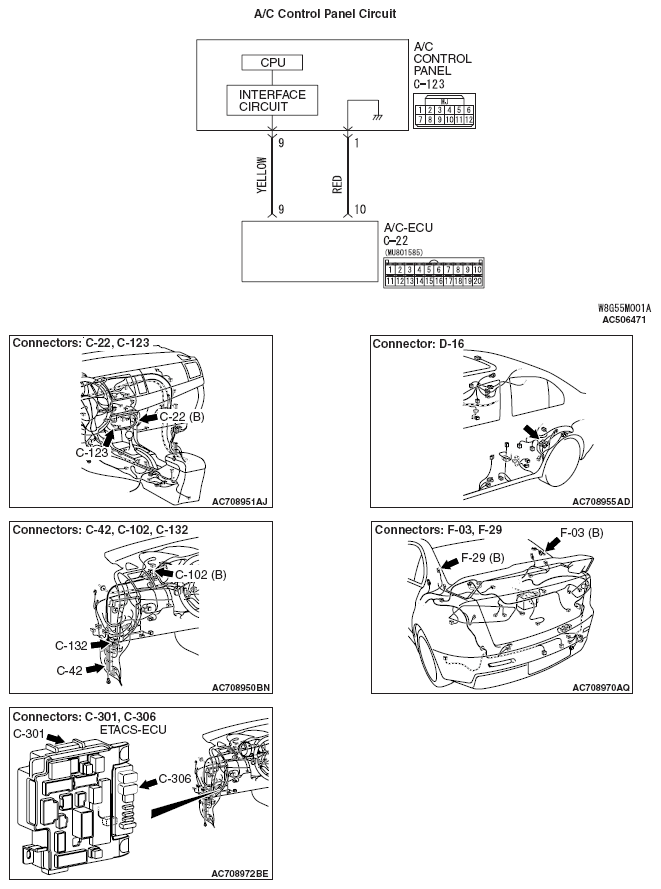

Fig 2: A/C Control Panel Circuit Diagram
G05397273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
