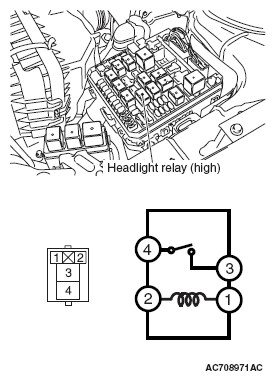

Headlight Relay (High) Check: Notes
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
NORMAL CONDITIONS CHART
| Battery voltage |
Terminal number |
Normal conditions |
| Not energized |
3-4 |
No continuity |
| With current supply [terminal 1 (+), terminal 2 (-)] |
Continuity exists (2 ohms or less) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
