Nominal Resistance Of The Fuel Level Sensor
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

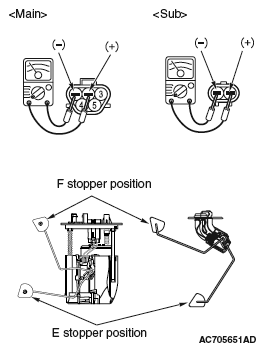

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
Standard value:
FLOAT POSITION CHART
| Float position | Gauge resistance value (ohms) | |
|---|---|---|
| Main | Sub | |
| Stopper position "F" | 6. 5 ± 1.0 | 6. 5 ± 1.0 |
| Stopper position "E" | 41.9 ± 1.0 | 78.1 ± 1.0 |
When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
