Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

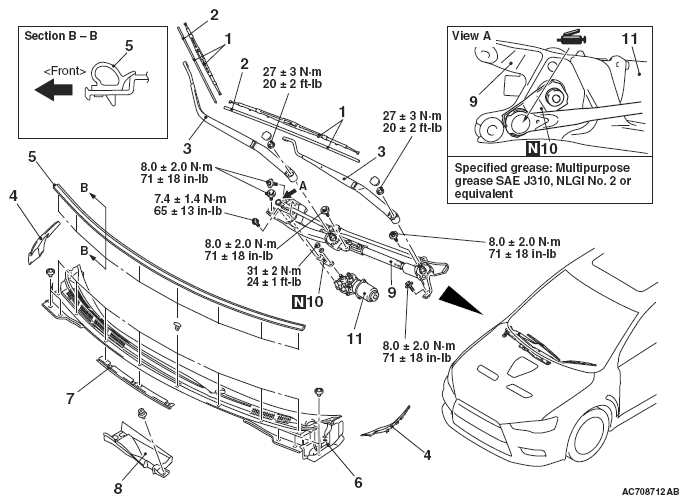

Fig 1: Windshield Wiper Replacement Components With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

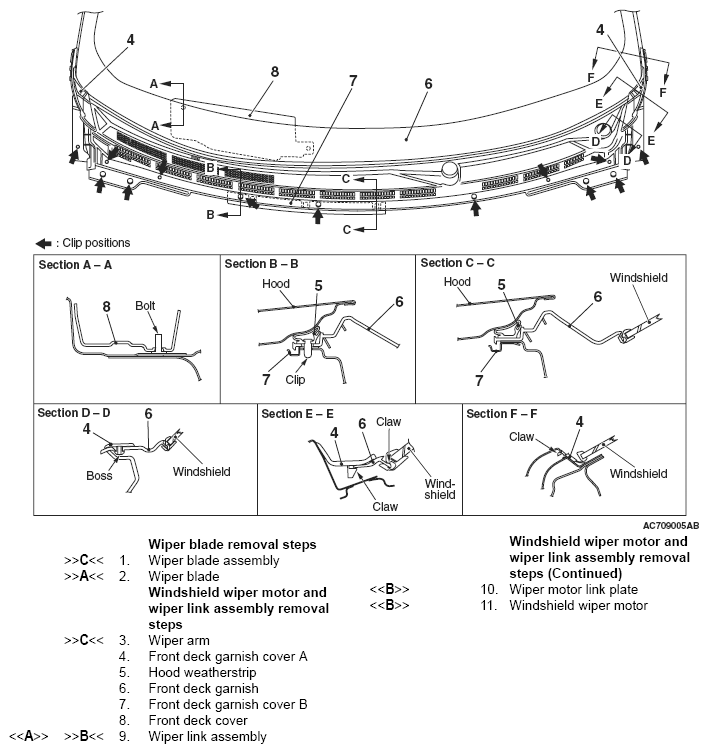

Fig 2: Identifying Windshield Wiper Remove/Install Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991958: M.U.T.-III sub-assembly
MB991223: Harness set
MB992006: Extra fine probe

NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
