Removal And Installation: Notes

CAUTION: *Remove and assemble the marked parts in each cylinder unit.

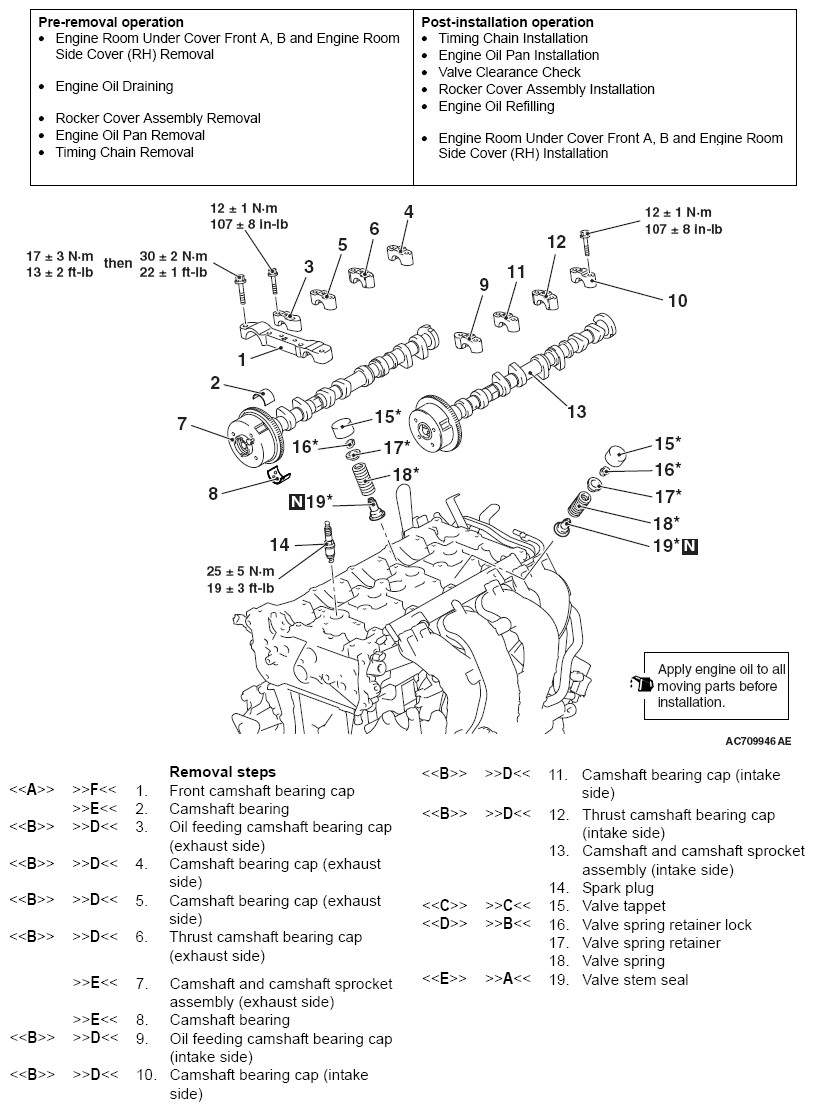

Fig 1: Valve Stem Seal Related Components With Torque Specifications

G09618983

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991928: Engine Hanger
MD998772: Valve Spring Compressor
MB992089: Retainer Holder C
MB992090: Retainer Holder Attachment
MB992085: Valve Stem Seal Pliers
MD998737: Valve Stem Seal Installer
