<< B >> Engine And Transaxle Assembly Holding

Install a special tool for holding the engine and transaxle assembly.

1. < Special tool MB991928 is used >
   1. Assemble the special tool MB991928. Set the following parts on the base hanger.
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (90) (MB991930)
   2. Set the foot of the special tool as shown in the figure.
      NOTE: Slide the slide bracket (HI) to adjust the engine hanger balance.

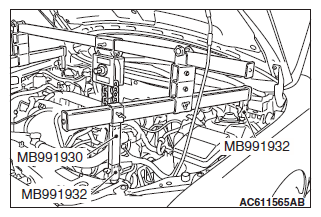

      Fig 1: Setting Foot Of Special Tool MB991930

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   3. Mount special tool MB991454 to the idler pulley bracket and engine hanger, and set it to special tool MB991928 to support the engine and transaxle assembly.
      Fig 2: Setting Special Tool MB991928 To Support Engine And Transaxle Assembly

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

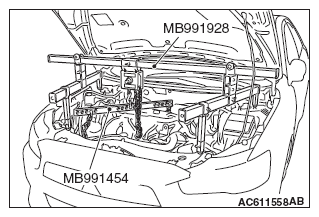

      Fig 3: Supporting Engine And Transaxle Assembly

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. < Special tool MB991895 is used >
   1. Set the foot of special tool MB991895 as shown in the figure.
      NOTE: Slide the foot to adjust the engine hanger balance.

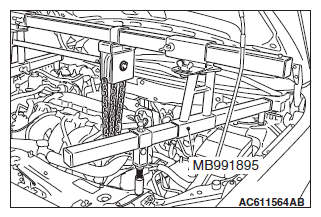

      Fig 4: Setting Foot Of Special Tool MB991895

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

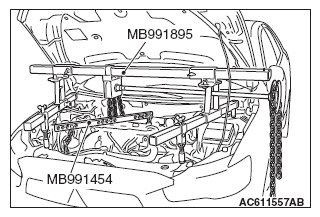

   2. Mount special tool MB991454 to the idler pulley bracket and engine hanger, and set it to special tool MB991895 to support the engine and transaxle assembly.

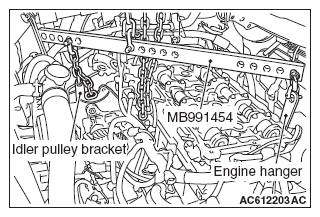

      Fig 5: Mounting Special Tool MB991454 To Idler Pulley Bracket And Engine Hanger

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Fig 6: Removing Special Tool MB991454, MB991928 And MB991895

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
