Removal And Installation: Notes

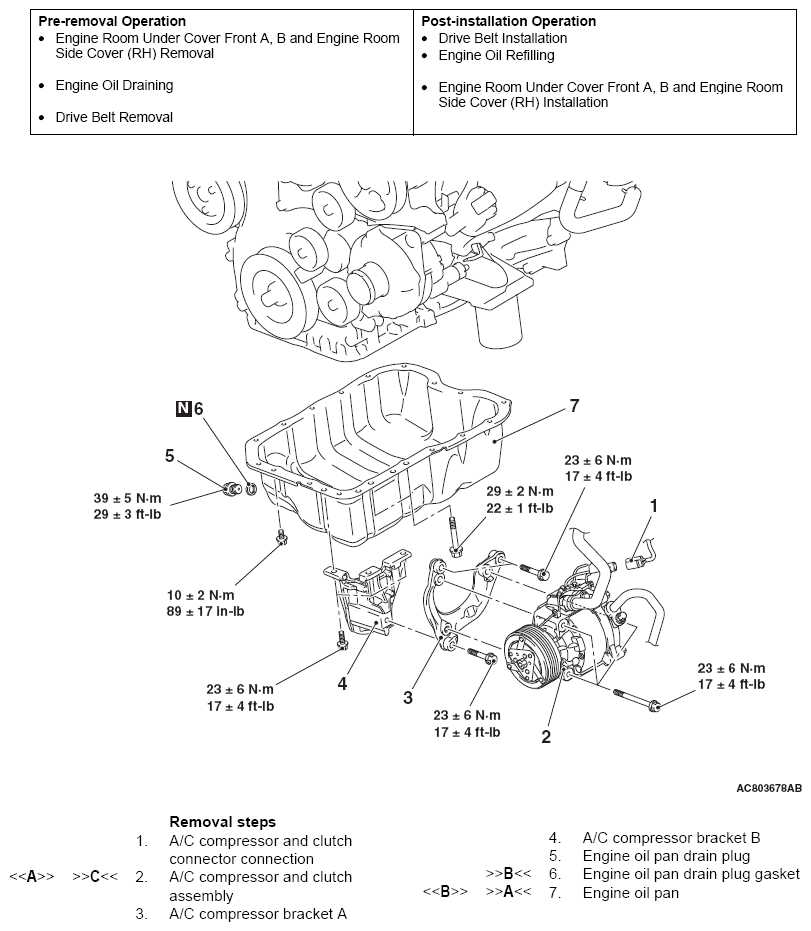

Fig 1: Oil Pan Related Components With Torque Specifications
G09619001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
