<< F >> Engine Assembly Removal

  1. Mount the special tool MB991454 to the idler pulley bracket and the engine hanger, and set the chain block.
  2. After checking that all cables, hoses and wiring harness connectors and so on are disconnected from the engine, lift the engine assembly slowly with the chain block to remove the engine assembly upward from the engine compartment.

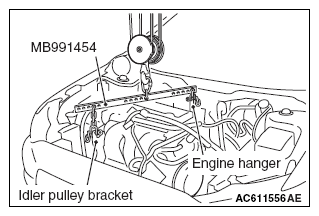

    Fig 1: Removing Engine Assembly
    G09619066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
