<< D >> Manual Transaxle Assembly/CVT Assembly Removal

  1. Install the front end upper bar bolts to the position as shown in the figure.
  2. Remove the transaxle assembly (Refer to TRANSAXLE ASSEMBLY ) < M/T > or (Refer to TRANSAXLE ASSEMBLY ) < CVT. >

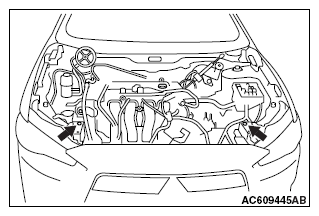

    Fig 1: Locating Front End Upper Bar Bolts
    G09619062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
