Rear wiper control - Initial condition: 8 seconds (without successive operations)

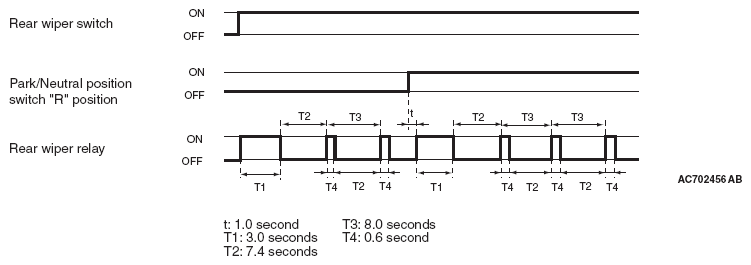

Fig 1: Rear Wiper Control Timing Pattern (Initial Condition 8 Seconds)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the rear wiper switch on the column switch is turned ON while the ignition switch is in ACC or ON position, ETACS turns the rear wiper relay ON for 3 seconds (for approximately 2 cycles) and operates the intermittent action in 8 seconds interval.
When the selector lever is moved to R (reverse) position during the rear wiper operation, the transmission range switch R (reverse) turns ON, and one second after that, ETACS turns the rear wiper relay ON for 3 seconds (for approximately 2 cycles), and operates the intermittent action in 8 seconds interval again.
By the special operation of the rear wiper switch on the column switch (2 consecutive operations), the rear wiper can operate continuously regardless on the set intermittent time.
NOTE: Using the customization function, the rear wiper intermittent time can be adjusted. (Refer to CUSTOMIZATION FUNCTION .)
