Special Tools

SPECIAL TOOLS SPECIFICATION

Tool Tool number and name Supersession Application
G06670693Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991367
Special spanner		 MB991367-01 Armature mounting nut of compressor removal and installation
G06670694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991386 Pin MIT217213 Armature mounting nut of compressor removal and installation
G06670695Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991658
Test harness set		 Tool not available Inspection of throttle position sensor
G06670696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222
 Harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 Continuity check and voltage measurement at harness wire or connector
  1. For checking connector pin contact pressure
  2. For checking power supply circuit
  3. For checking power supply circuit
  4. For connecting a locally sourced tester
G06670697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting

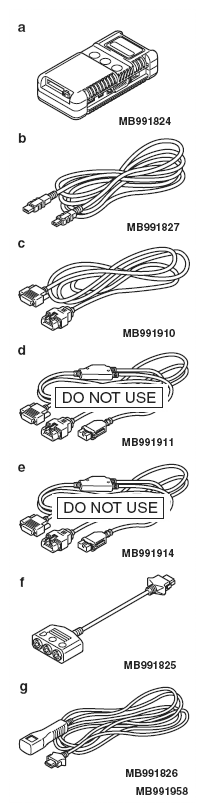

G06670698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
DTC, data list and actuator test check.
