Simple Inspection Of The A/C Pressure Sensor

  1. Assemble a gauge manifold on the high pressure service valve.
  2. Disconnect the A/C pressure sensor connector and connect special tool test harness MB991658 as shown in the illustration.
  3. Turn ON the engine and then turn ON the air conditioner switch.

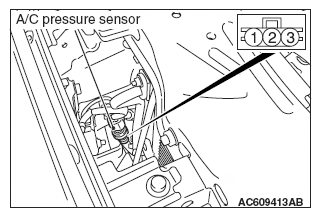

    Fig 1: Identifying A/C Pressure Sensor Connector Terminal
    G06670700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Checking A/C Pressure Sensor Connector Terminal
    G06670701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. At this time, check to see that the voltage of A/C pressure sensor terminal No. 2 reflects the specifications of the figure.
    NOTE: The allowance shall be defined as ±5%.
    Fig 3: Voltage Output Graph
    G06670702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
