Blower Relay Continuity Check

BATTERY VOLTAGE SPECIFICATION

Battery voltage Tester connection Specified condition
Not applied 3 - 4 Open circuit
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 2 to the negative battery terminal
3 - 4 Less than 2 ohms

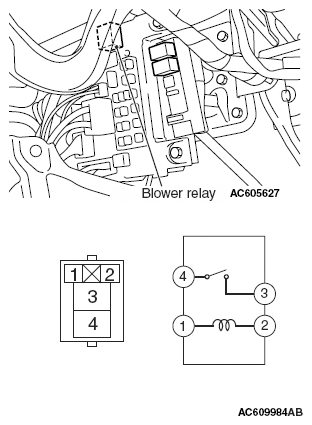

Fig 1: Identifying Blower Relay
G06670707Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
