Removal And Installation: Notes

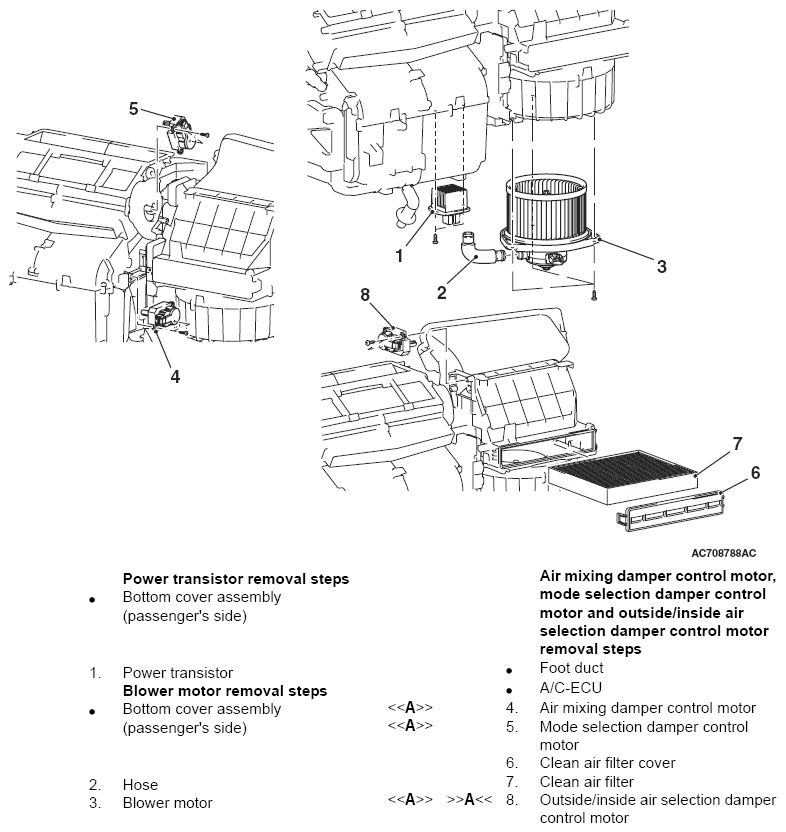

Fig 1: Identifying Motors And Transistor Components
G06670715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
