INSPECTION PROCEDURE 9: Rear window defogger does not operate: Notes

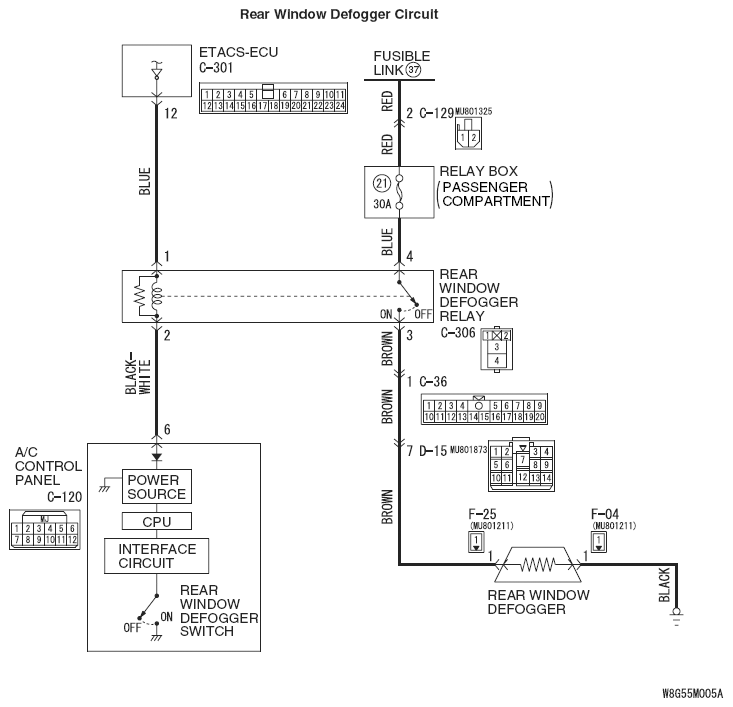

Fig 1: Rear Window Defogger Circuit Diagram
G06670680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

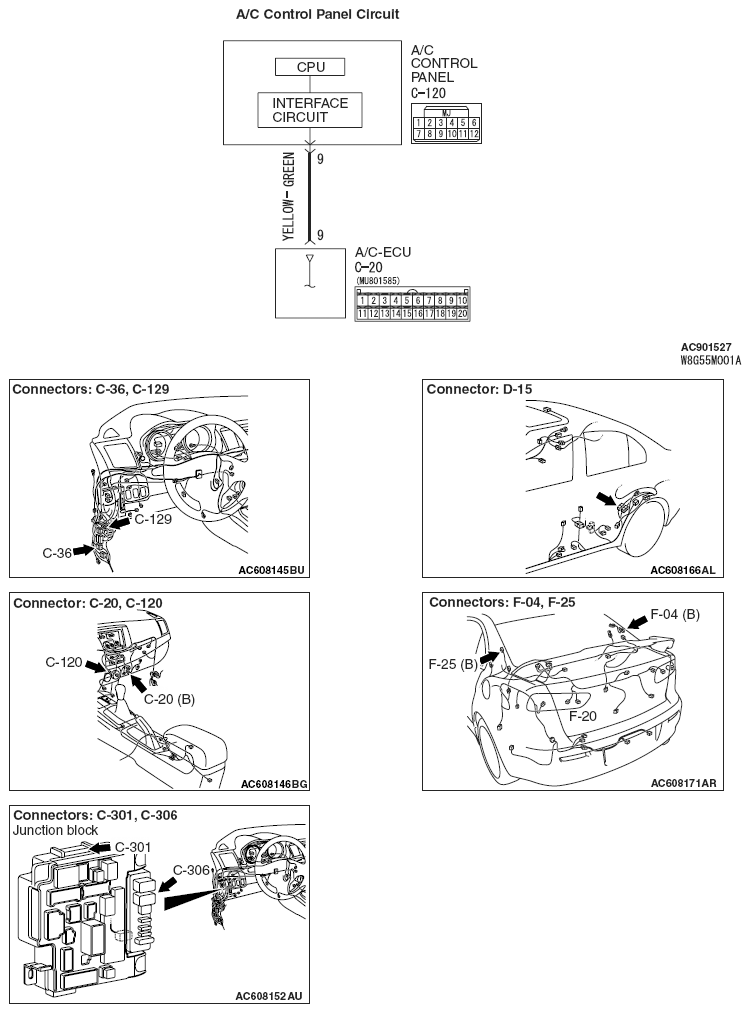

Fig 2: A/C Control Panel Circuit Diagram
G06670681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
