INSPECTION PROCEDURE 8: Air Outlet Vent cannot be Changed: Notes

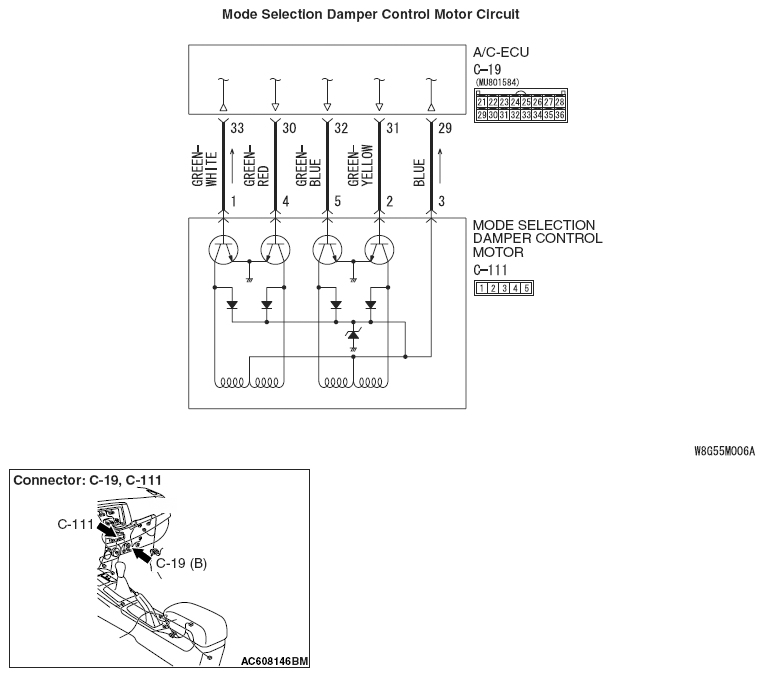

Fig 1: Mode Selection Damper Control Motor Circuit Diagram

G06670678

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
