INSPECTION PROCEDURE 3: The Compressor does not Work: Notes

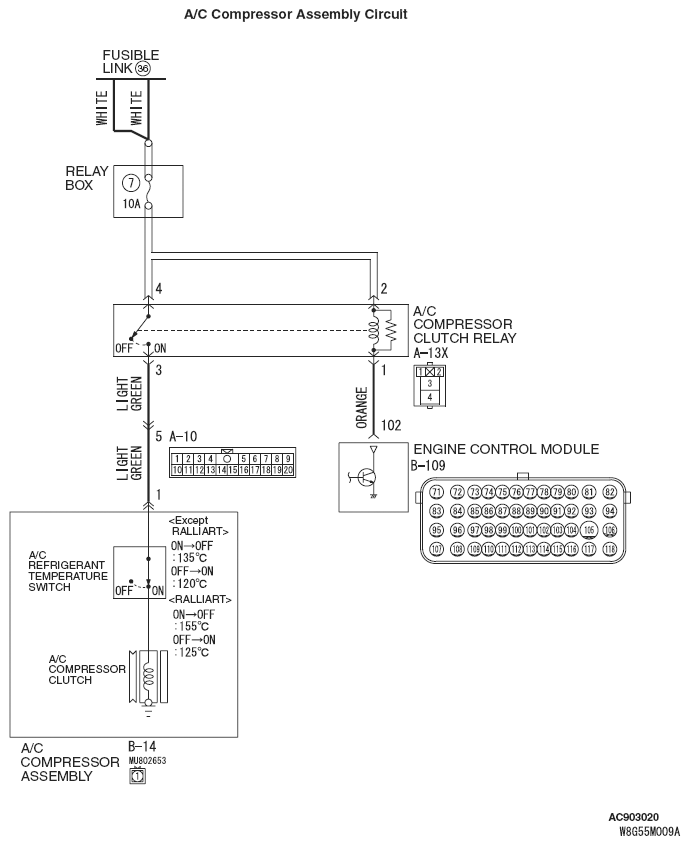

Fig 1: A/C Compressor Assembly Circuit Diagram
G06670657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

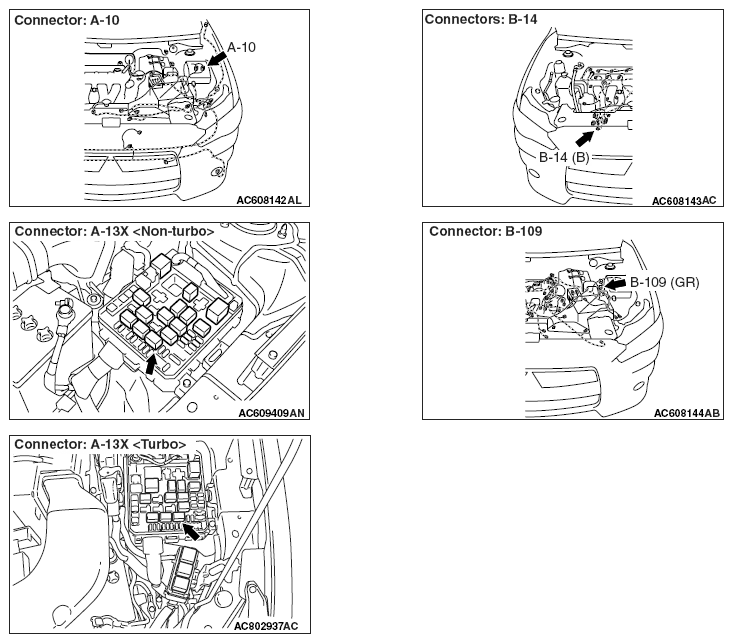

Fig 2: Identifying A-10, B-14 And B-109 Connectors
G06670658Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
