INSPECTION PROCEDURE 2: Malfunction of the A/C-ECU Power Supply System: Notes

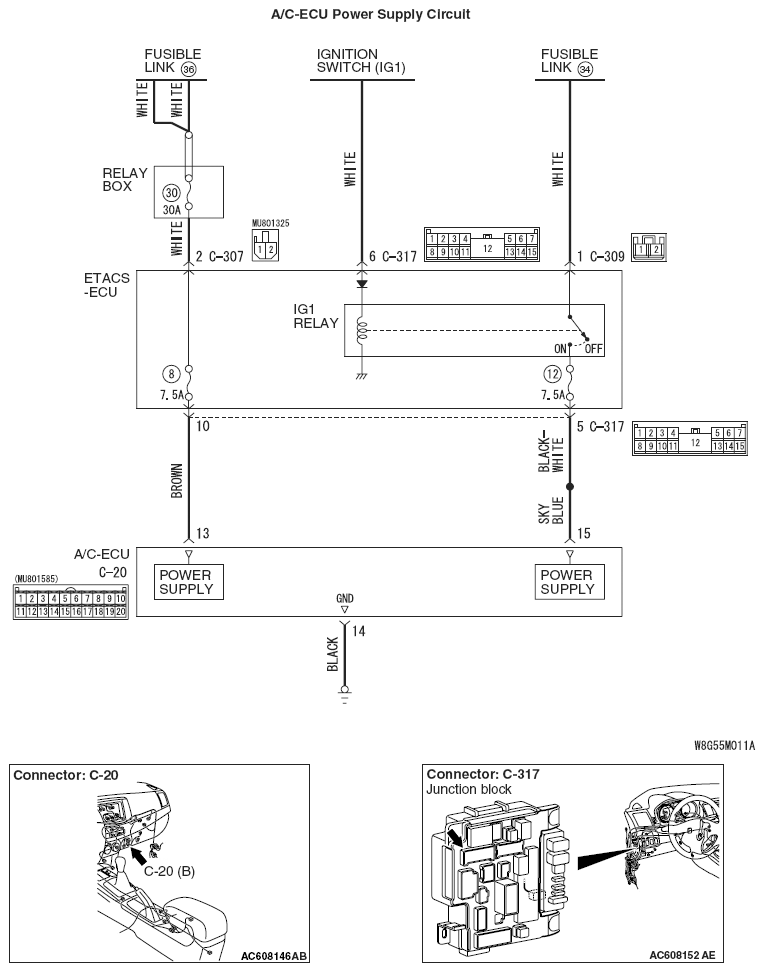

Fig 1: A/C-ECU Power Supply Circuit Diagram

G06670653

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
