INSPECTION PROCEDURE 10: Blower Motor power supply system: Notes

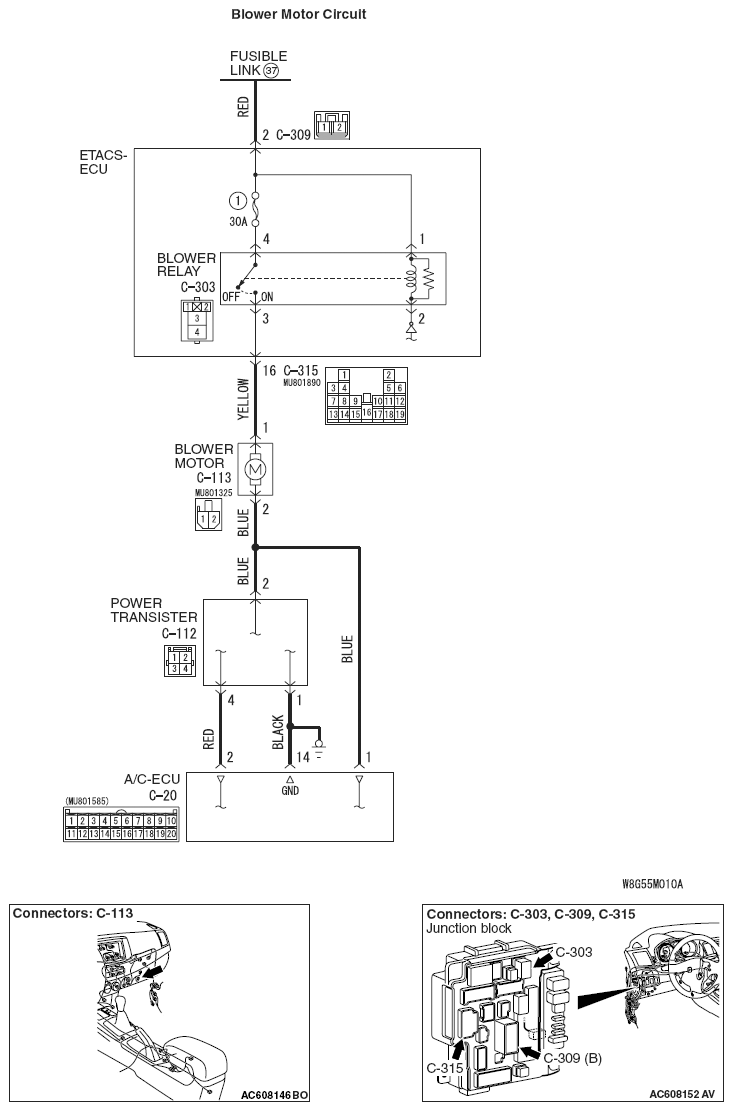

Fig 1: Blower Motor Circuit Diagram

G06670688

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
