Removal And Installation: Notes

WARNING:

Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING <Except for RALLIART> or DRIVER'S AIR BAG MODULE AND CLOCK SPRING <RALLIART>.
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (Refer to ON-VEHICLE SERVICE ).

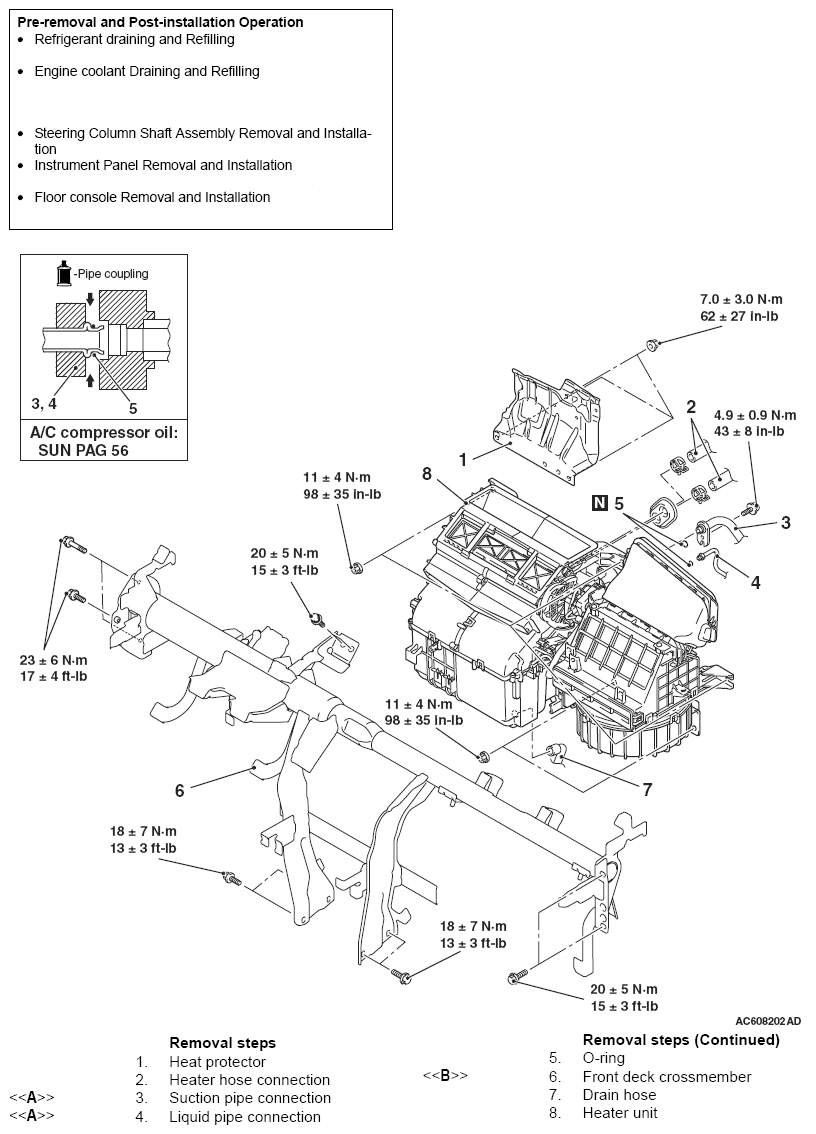

Fig 1: Heater Unit And Blower Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
