Removal And Installation

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE ).

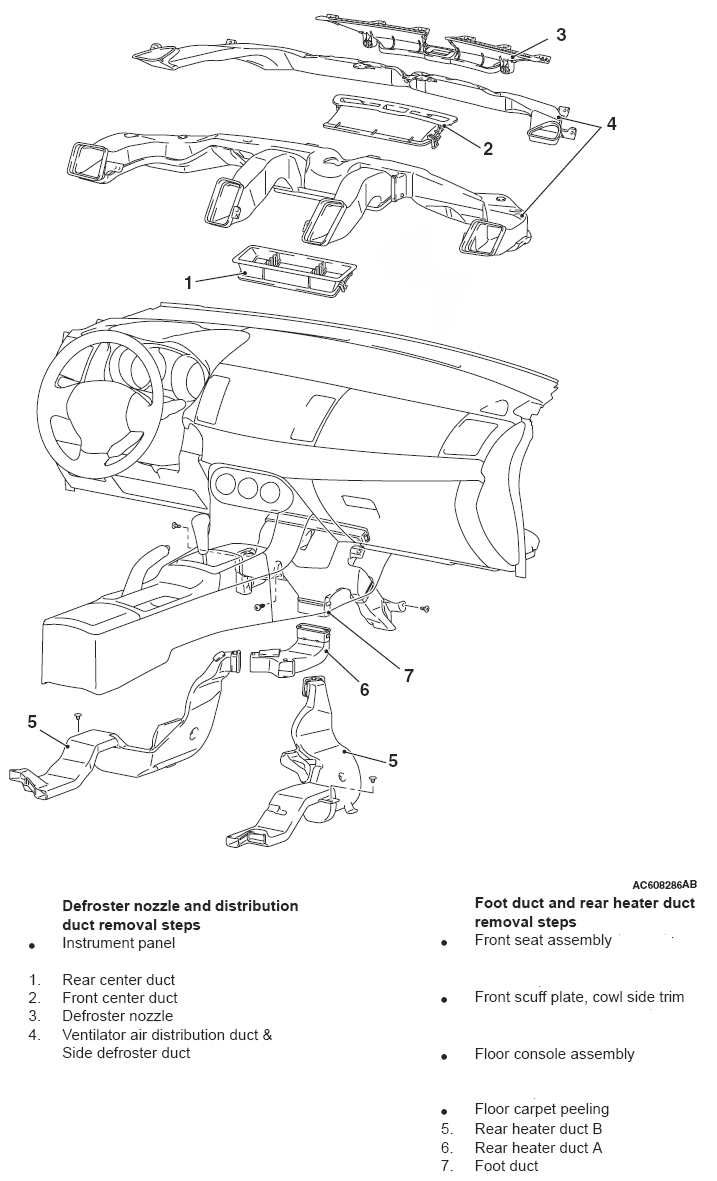

Fig 1: Exploded View Of Ducts
G06670745Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
