Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heating, Air Conditioning And Ventilation -- Lancer >> Condenser Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

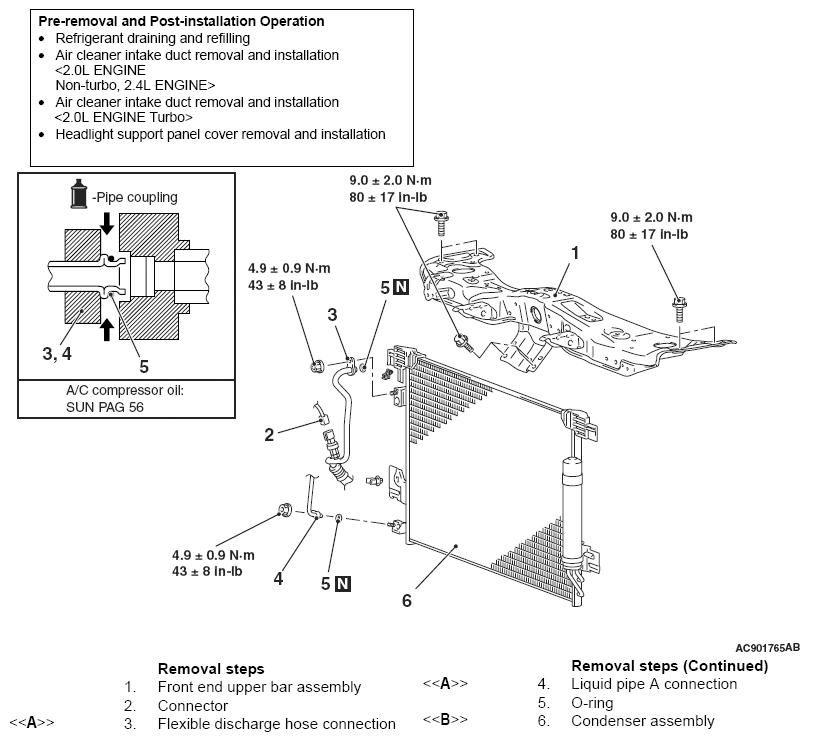

Fig 1: Condenser Assembly Replacement Components With Torque Specifications
G06670742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
