>>B<< Valve Spring Retainer Lock Installation

WARNING: This page is about a different variant/trim than selected.

In the same manner as removal, use special tool MD998772 (with special tools MB992090 and MB992089 attached) to compress the valve spring, and install the valve spring retainer lock.

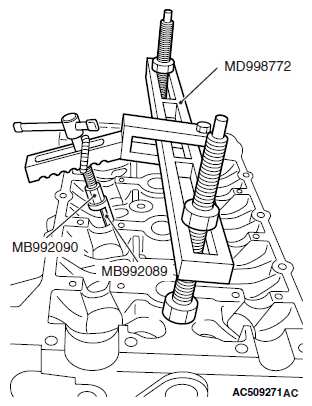

Fig 1: Installing Valve Spring Retainer Lock Using Special Tool MB992090
G06671537Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
