>>B<< Timing Chain TENSIONER Installation

WARNING: This page is about a different variant/trim than selected.

Check that the sprocket timing chain mating marks align with the link plates (orange or blue) of the timing chain, and install the timing chain tensioner to the cylinder block.

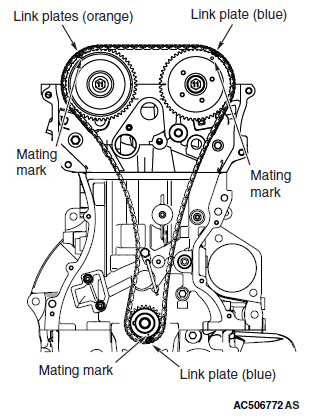

Fig 1: Identifying Sprocket Timing Chain Mating Marks With Link Plates
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the hard wire or L-shaped hexagon wrench fixing the plunger of the timing chain tensioner to apply tension to the timing chain.

Fig 2: Identifying Timing Chain Tensioner And Hard Wire Or L-Shaped Hexagon Wrench
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
