>>A<< Timing Chain Installation

WARNING: This page is about a different variant/trim than selected.

Set the timing marks of the camshaft sprockets and the crankshaft sprocket as shown in the illustration.

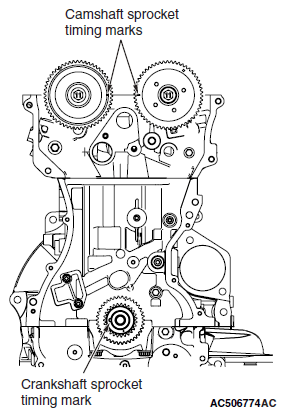

Fig 1: Identifying Camshaft Sprockets Timing Marks And Crankshaft Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align each sprocket timing chain mating marks with the link plate (orange or blue) of timing chain to avoid slack of the timing chain tension side, and install the timing chain to the sprockets.

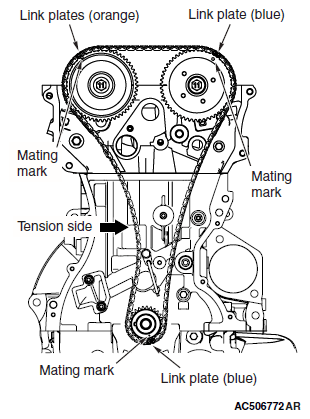

Fig 2: Identifying Sprocket Timing Chain Mating Marks With Link Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
