Special Tools

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS CHART

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992080 Belt tension meter set MB9912081 Belt tension meter MB992082 Mic assembly	Tool not available	Drive belt tension (frequency) measurement

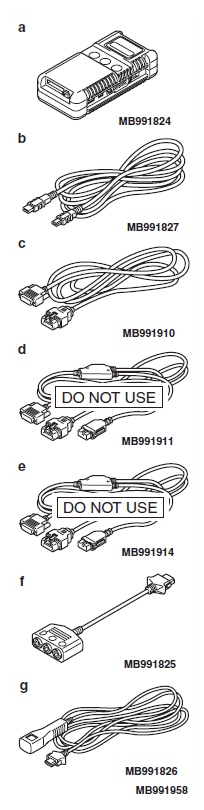

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 Scan tool (M.U.T.-III sub assembly) MB991824 Vehicle communication interface (V.C.I.) MB991827 M.U.T.-III USB cable MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system) MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system) MB991914 M.U.T.-III main harness C (for Chrysler models only) MB991825 M.U.T.-III adapter harness MB991826 M.U.T.-III trigger harness	MB991824-KIT NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Ignition timing check Curb idle speed check Idle mixture check Erasing the diagnostic trouble code
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992278 Belt tension release wrench		Auto-tensioner tension release
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990767 Front hub and flange yoke holder	MB990767-01	Holding the crankshaft pulley
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998719 Pin	MIT308239	Holding the crankshaft pulley
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992103 Chain tension release bar	-	Camshaft and camshaft sprocket assembly (exhaust side) removal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998772 Valve spring compressor	General service tool	Valve spring compression
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992090 Retainer holder attachment	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992089 Retainer holder C	-
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992085 Valve stem seal pliers	-	Valve stem seal removal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998737 Valve stem seal installer	MD998737-01	Valve stem seal press-fitting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998727 Oil pan FIPG cutter	MD998727-01	Engine oil pan removal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991883 Flywheel stopper	General service tool	Supporting the flywheel <M/T> or drive plate <CVT>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MD998718 Crankshaft rear oil seal installer	MD998718-01	Press-fitting the crankshaft rear oil seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991448 Bush remover and installer base	MB991448-01	Press-fitting the crankshaft front oil seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991614 Angle gauge	-	Balancer shaft and oil pump module installation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991454 Engine hanger balancer	MZ203827-01	Supporting the engine and transaxle assembly during removal and installation of the timing chain Supporting the engine assembly during removal and installation of the transaxle assembly NOTE: Special tool MB991454 is a part of engine hanger attachment set MB991453.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991895 Engine hanger	Tool not available
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991928 Engine hanger MB991929 Joint (50) x 2 MB991930 Joint (90) x 2 MB991931 Joint (140) x 2 MB991932 Foot (standard) x 4 MB991933 Foot (short) x 2 MB991934 Chain and hook assembly	Tool not available
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992201 Engine hanger plate	-	Transaxle assembly removal
