>>B<< Engine Mounting Insulator Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.

Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting insulator while adjusting the position of the engine assembly.
Remove special tool MB991454.
Install special tool MB992201 and MB991928 or MB991895 which is used during installation of transaxle assembly to hold the engine assembly (Refer to TRANSAXLE ASSEMBLY ) <M/T> or (Refer to TRANSAXLE ASSEMBLY ) <CVT.>

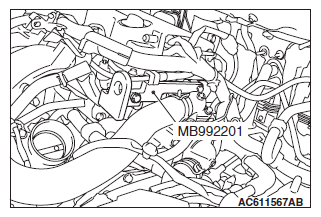

Fig 1: Identifying Engine Assembly And Special Tool MB992201
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

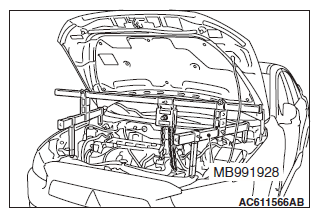

Fig 2: Supporting Engine Assembly Using Special Tool MB991928
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

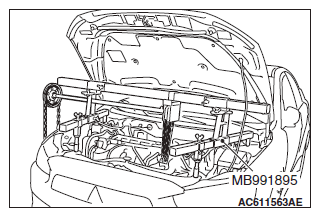

Fig 3: Supporting Engine Assembly Using Special Tool MB991895
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
