>>B<< Cylinder Head Bolt Assembly/Cylinder Head Bolt Installation

WARNING: This page is about a different variant/trim than selected.

Replace cylinder head bolts with a new ones.
For two cylinder head bolts of the timing chain side, the washer can be removed from the bolt. Install the washer, with its sag facing upward, to the cylinder head bolts.
Apply a small amount of engine oil to the cylinder head bolt threads and the washers.
Tighten the cylinder head bolts by the following procedure (plastic region angular tightening method.)

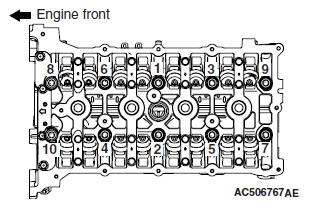

1. Tighten the cylinder head bolts to the specified torque in the order of number shown in the illustration.
  Tightening torque: 35 ± 2 N.m (26 ± 1 ft-lb)
  CAUTION:
  - The cylinder head bolt is not tightened sufficiently if the tightening angle is less than a 180 degrees angle.
  - If the tightening angle exceeds the standard specification, remove the cylinder head bolt and repeat the installation steps from Step 1.

    Fig 1: Identifying Cylinder Head Bolts Tightening Sequence
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

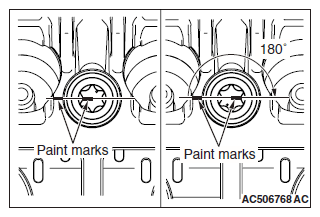

2. Put a paint mark on the cylinder head bolt head and cylinder head, tighten to 180 ± 2 degrees angle in the order of number shown in the illustration, and check that the paint mark on the cylinder head bolt head aligns with the paint mark on the cylinder head.

  Fig 2: Identifying Paint Mark On Cylinder Head
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
